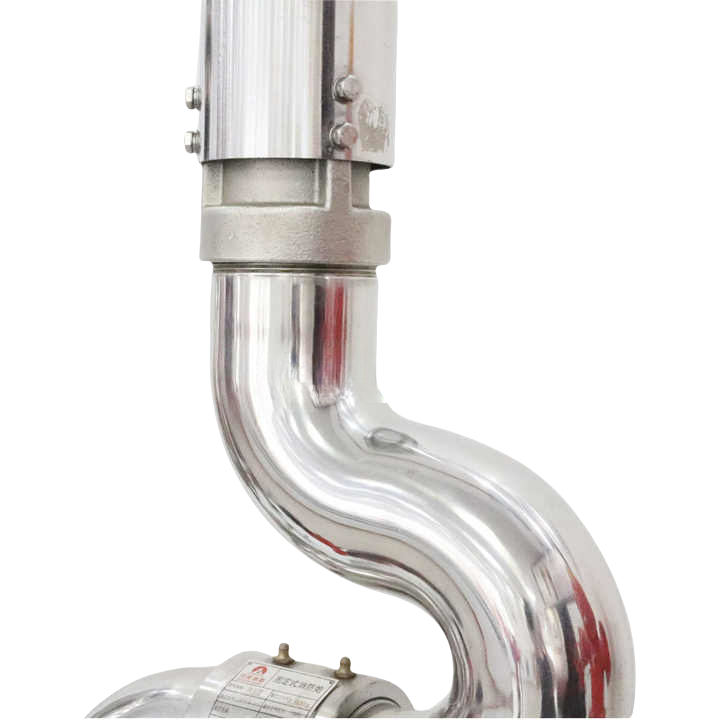

Stainless Steel Manual Fire Water Foam Monitor-PL8/24-48-H

Stainless Steel Manual Fire Water Foam Monitor-PL8/24-48-H
Product Introduction:
XHFM Sainless steel manual fire water /foam monitor has characteristic with different flow rate, distant range and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream. Operating operation lever principle, light and fast. Stainless steel for corrosion resistance and aesthetics. Manual fire monitor can be installed in the places of flammable chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles. Nozzle flow rate from1400 LPM up to 2880 LPM.The fire water monitor suitable for good range of Industries.with few and easy maintenance.
Send Inquiry
Description
Technical Parameters
Products Description

XHFM Sainless steel manual fire water /foam monitor has characteristic with different flow rate, distant range and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream. Operating operation lever principle, light and fast. Stainless steel for corrosion resistance and aesthetics. Manual fire monitor can be installed in the places of flammable chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles. Nozzle flow rate from1400 LPM up to 2880 LPM.The fire water monitor suitable for good range of Industries.with few and easy maintenance.



Products Parameters
Brand Name：XHFM
Place of Origin：Fujian, China
Model Number：PL8/24-48-H
Material：SS304 & SS316
Size：PLZ24-PLZ48
Working pressure：8 Bar
Max W.P：10 Bar
Max. Reach ：60m
Flow Rate：1440-2880LPM
Inlet：4 Inch
Outlet：2 1/2 Inch
Rotation：360°C
Elevation：(-70°+70° )


Application:

- Aircraft hangars
- Oil depot
- Petroleum
- Chemical industry
- Dock
- Gas station







monitor Description

  1. Handle control ;
  2. SS304 &SS316 Material;
  3. Flow Rate:24-48LPS
  4. Jetting Pattern: Straight stream;
  5.  360° rotation horizontally;
  6. -15° to +60° elevate vertically;
  7. Flange standard: BS4504,ANSI150,GB,etc.
Model Number PLZ8/24-48-H
Flow Rate 1440/1920/2400/2880LPM (Choose one flow rate )
Working Pressure 8Bar
Max. Reach @ 10 bar 60meters @2880 LPM
Max. Fog Angle 120°
Max Range Of Monitor -15° to +60° Vertically, 360° Rotation
Waterway Size 2.5”(65mm)
Monitor Outlet 2.5” (65mm) NH male thread
Monitor Inlet Flange 4” BS4504 is standard,other standard flange is available
Material SS304
Foam expansion ≥6
25% Drain Time ≥150S

fAQ


Q:1.How to have an order?

A:Before customers have an order, please tell us more details of the products you required which are good for us to introduce you or help you choose the best product.

Q:2.How long does it take to produce the product??

A:Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.

Q:3.What can you buy from us?

A:Fire Sprinkler system,Foam system,Fire Monitor,Fire Nozzle,Fire Valves,Fire Hydrants

Q:4.How can I get the price?

A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
