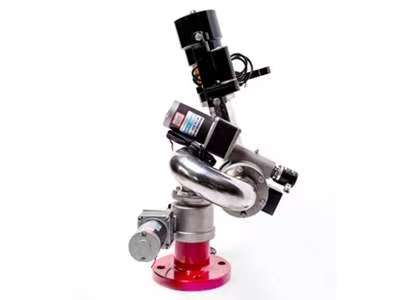

ZDMS0.930S automatic tracking and positioning jet fire extinguishing device

ZDMS0.930S automatic tracking and positioning jet fire extinguishing device
Product Introduction:
The fully automatic tracking and positioning jet fire extinguishing device organically combines infrared sensing technology, signal processing technology, communication control technology, computer technology and mechanical transmission technology, and can automatically monitor fires within the protection range around the clock. Once a fire occurs, the fire extinguishing device will start immediately, and intelligently scan the fire source in the horizontal and vertical directions. After determining the two positions of the fire source, the central controller will issue a command, send out a fire alarm signal, and start the water pump and open the valve at the same time. The fire extinguishing device will aim at the fire source to spray water to extinguish the fire. After the fire source is extinguished, the central controller will issue a command to stop spraying water. If there is a new fire source, the fire extinguishing device will repeat the above process and return to the monitoring state after all fire sources are extinguished. The water spraying form of the 30L/S~40L/S fully automatic tracking and positioning jet fire extinguishing device is columnar water spraying, with a long range, a wide protection range, and a very strong fire extinguishing ability.

Performance characteristics:
◆Adopt dual-band infrared ultraviolet composite detection technology, detect fire early, high accuracy, wide range, no blind spots;
◆Can be used to spray water at the fire source, and the fire source can be sprayed at a fixed point, which is efficient in extinguishing early fires;
◆The spray direction of the nozzle of the fire extinguishing device can be manually controlled through the 485 bus on site;
◆Adopt bus image transmission technology, combined with on-site color image signals for remote manual control;
◆Adopt laser irradiation principle, it can detect whether the water spray of the fire extinguishing device is accurate without spraying water;
◆Meet the three control modes of manual, automatic and remote manual specified by the national standard;
◆Bus communication, less consumables, convenient construction, simple and convenient maintenance;
◆Secondary search, no need to reset, greatly shortens the fire extinguishing time;
◆Can send linkage signals of any other manufacturer's fire automatic alarm system;
◆Light weight, compact size, generous and beautiful.
Send Inquiry
Description
Technical Parameters
Products Description

The fully automatic tracking and positioning jet fire extinguishing device organically combines infrared sensing technology, signal processing technology, communication control technology, computer technology and mechanical transmission technology, and can automatically monitor fires within the protection range around the clock. Once a fire occurs, the fire extinguishing device will start immediately, and intelligently scan the fire source in the horizontal and vertical directions. After determining the two positions of the fire source, the central controller will issue a command, send out a fire alarm signal, and start the water pump and open the valve at the same time. The fire extinguishing device will aim at the fire source to spray water to extinguish the fire. After the fire source is extinguished, the central controller will issue a command to stop spraying water. If there is a new fire source, the fire extinguishing device will repeat the above process and return to the monitoring state after all fire sources are extinguished. The water spraying form of the 30L/S~40L/S fully automatic tracking and positioning jet fire extinguishing device is columnar water spraying, with a long range, a wide protection range, and a very strong fire extinguishing ability.

Performance characteristics:
◆Adopt dual-band infrared ultraviolet composite detection technology, detect fire early, high accuracy, wide range, no blind spots;
◆Can be used to spray water at the fire source, and the fire source can be sprayed at a fixed point, which is efficient in extinguishing early fires;
◆The spray direction of the nozzle of the fire extinguishing device can be manually controlled through the 485 bus on site;
◆Adopt bus image transmission technology, combined with on-site color image signals for remote manual control;
◆Adopt laser irradiation principle, it can detect whether the water spray of the fire extinguishing device is accurate without spraying water;
◆Meet the three control modes of manual, automatic and remote manual specified by the national standard;
◆Bus communication, less consumables, convenient construction, simple and convenient maintenance;
◆Secondary search, no need to reset, greatly shortens the fire extinguishing time;
◆Can send linkage signals of any other manufacturer's fire automatic alarm system;
◆Light weight, compact size, generous and beautiful.



Products Parameters
Place of Origin
 		 Fujian, China

Brand Name
 		 XHFM

Model Number
 		 PSKD8/20-40W-A

Flow Rate
 		 1200-2400 LPM

Working Pressure 8 bar

Material
 		 Stainless Steel

Nozzle Type
 		 Selectable

Jetting Pattern
 		 Straight Stream, Fog

Max. Range Of Motion
 		 -90° to +90° Vertically, 340° Rotation

Waterway Size
 		 2 1/2'' (65 mm）

Monitor Outlet
 		 2 1/2'' (65 mm) NH male thread

Monitor Intlet Flange 3" ANSI 150# is standard,other size and standard available

Application Firefighting, Firefighter





monitor Description

fAQ


Q:1.How to have an order?

A:Before customers have an order, please tell us more details of the products you required which are good for us to introduce you or help you choose the best product.

Q:2.How long does it take to produce the product??

A:Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.

Q:3.What can you buy from us?

A:Fire Sprinkler system,Foam system,Fire Monitor,Fire Nozzle,Fire Valves,Fire Hydrants

Q:4.How can I get the price?

A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
