ong jetting time mobile foam tank fire suppression system portable foam tank

Product Introduction:

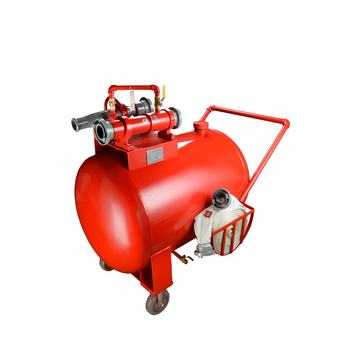

The portable foam extinguishing equipment not only as the standalone equipment but also cooperate with large fixed foam extinguishing fire.It is made up of foam tank,foam nozzle,proportioner,fire hose,trolley base and so on.Mainly used in the oil field,tank farm,refinry,petroleum,chemical enterprise,oil transportation port,garage,warehouse.The portable foam extinguishing equipment adopt negative-pressure type proportional,make the foam liquid from foam tank to proportioner through the piprtte,mixture with water become mixture foam liquid connect fire hose to air foam nozzle.

Send Inquiry

Description

Technical Parameters

Products Description

Products Parameters

Size	working pressure(Mpa)	Flow of mixture liquid(L/S)		3%effective jetting time of foam liquid
Size	0.5-1.2	Pq4	Pq8	Pq4	Pq8	Pq4 and Pq8
PY4/50		4	8	7	3.5	2.3
PY4/100				14	7	4.5
PY4/200				28	14	9
PY4/300				41.5	20.5	13.5
PY4/400				55.5	27.5	18
Pc24				69.5	34.5	23

Nozzle Description

Feature:
1.Good performance
2.Flexible and convience
3.Can connect with foam gun,foam generator to make up low.Middle,high foam expansion extinguishing system.
4.Cheap and long jetting time.

How To Cooperate With Us?

Dear Customer, welcome to contact us

Our address

Xxx Co., Ltd-China

Phone Number

+86 1388888888

E-mail

aaa@gmail.com

Hot Tags: spray fire nozzle, China, manufacturers, suppliers, wholesale, price, Automatic Fire Nozzle, Groove Type Alarm Valve, Fog Spike Misting Fire Nozzle, Angle Flange Landing Valve, Sidewall Glass Bulb Fire Sprinklers Heads, Mobile Foam Tank

Place of Origin Fujian, China Brand Name XHFM Model Number PY Product name Portable foam extinguisher equipment Working Pressure 0.5-1.2 Mpa Color Red and Silver Description Available Flow rate range 4 L/S ,8 L/S or 16 L/S Capacity 30L up to 500L Proportioning ratio 3% or 6% Accessories Fire hose , fire nozzle Certificated ISO WSF CCC
