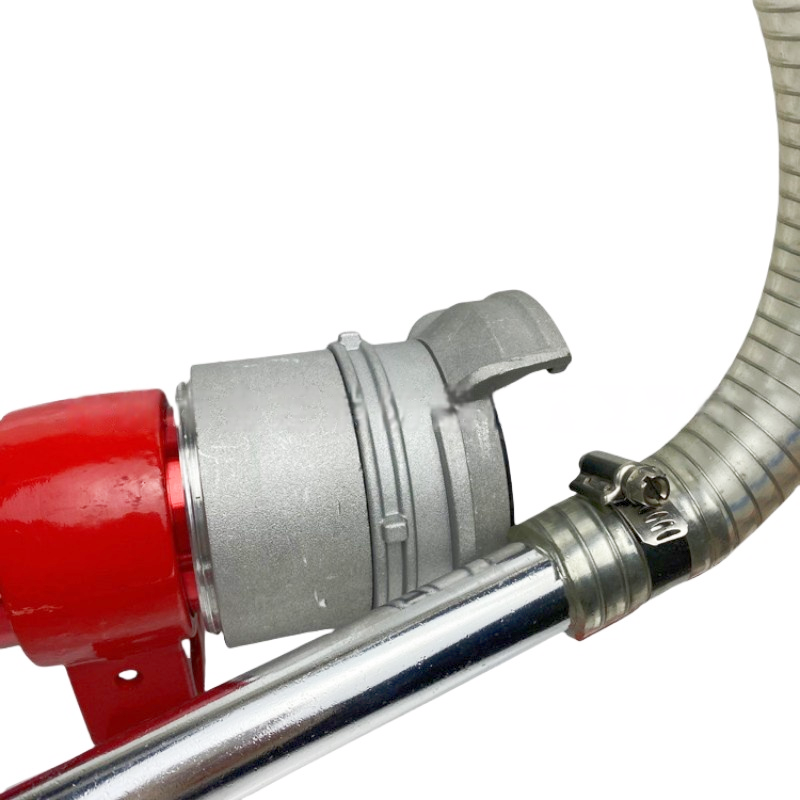

Aluminum Alloy Portable Foam Inductor in-Line Foam Fire Indutor

Product Introduction:

Foam Inductor / Foam Eductor
The portable foam inductors can be placed near a portable pump or hydrant outlet, minimising manpower requirements and leaving the firefighter to concentrate on effective application of the foam to control the fire situation.
It offers a simple accurate method of proportioning when the water supply pressure is reasonably high. Each proportioner is designed for a set water pressure. However, higher or lower inlet pressure results in an increase or decrease in water flow with a change in proportioning.

Send Inquiry

Description

Technical Parameters

Products Description

Products Parameters

Technical Parameter
Pressure range	0.7 to 1.0 Mpa
Inlet and outlet size	2.5 inch/65mm
Connection	British-BS336, German-Storz, Russia/Vietnam-GOST,etc
Flow	240LPM@0.7Mpa, 360LPM@1.0Mpa
Material	Body in brass,aluminium alloy,and iron.Nozzle in stainless steel

Model NO.	PHF/A6
Flow Rate	240 Lpm @ 0.7MPa; 360 Lpm@ 1.0MPa
Surface	Red Painting
Working Pressure	0.7 - 1.0MPa
Inlet Size	2.5′′coupling,Storz, Inst,GOST, Machino,etc
Foam Solution Ratio	1% - 6% Adjustable
Transport Package	Carton
Specification	354040
Trademark	non
Origin	China
HS Code	8424100000
Production Capacity	500sets/Month

Nozzle Description
