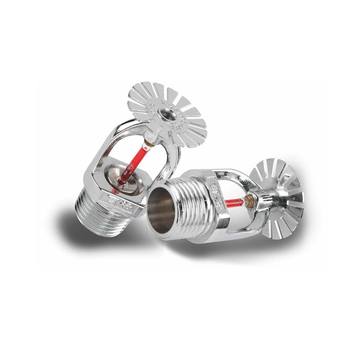

China Factory's Brass Glass Bulb Fire Sprinkler Head 68 Degrees Firefighting Equipment & Access

China Factory's Brass Glass Bulb Fire Sprinkler Head 68 Degrees Firefighting Equipment & Access
Product Introduction:
1. Fire Sprinkler is an important part of wet-type auto spraying system. It is usually installed inside the building and structures with light fire danger, medium fire danger and heavy fire danger, such as workshop, warehouse, hotel, shop, recreational place, hospital, cinema, office building and garage.
2.The sprinkler consists of sprinkler frame, sealant and glass bulb. It is to be installed in the protective district via ductwork, acting as a fire detector and auto sprayer.
3. In case of fire inside the protective district, the atmosphere temperature rises up and the liquid inside the glass bulb expands after being heated and explodes after reaching the operating temperature of the glass ball. The sealant drops and the sprinkler sprays to the protective district for fire extinguishments subject to the preset shape of spraying.
Send Inquiry
Description
Technical Parameters
Products Description

China Factory's Brass Glass Bulb Fire Sprinkler Head 68 Degrees Firefighting Equipment & Access

China Factory's Brass Glass Bulb Fire Sprinkler Head 68 Degrees Firefighting Equipment & Access



1. Fire Sprinkler is an important part of wet-type auto spraying system. It is usually installed inside the building and structures with light fire danger, medium fire danger and heavy fire danger, such as workshop, warehouse, hotel, shop, recreational place, hospital, cinema, office building and garage.
2.The sprinkler consists of sprinkler frame, sealant and glass bulb. It is to be installed in the protective district via ductwork, acting as a fire detector and auto sprayer.
3. In case of fire inside the protective district, the atmosphere temperature rises up and the liquid inside the glass bulb expands after being heated and explodes after reaching the operating temperature of the glass ball. The sealant drops and the sprinkler sprays to the protective district for fire extinguishments subject to the preset shape of spraying.

Type Specification Nominal Diameter(mm) Thread Size (inch) K Factor (K)
Conventional T-ZSTP


             DN15
             DN20



              1/2"
              3/4"




        80
        115
Pendent T-ZSTX
Upright T-ZSTZ
Sidewall T-ZSTB
Concealed ZSTDY

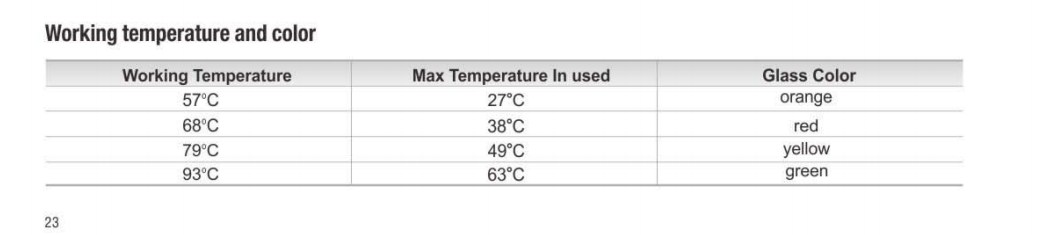

. Ambient Temp. Allowed 115°F/46°C 135°F/57°C 155°F/68°C 180°F/82°C
Max. Recommended Ambient Temp 100°F/38°C 100°F/38°C 150°F/65°C 150°F/65°C
Glass Bulb Color Orange Red Yellow Green

Products Parameters





How To Cooperate With Us?

Dear Customer, welcome to contact us

Our address

Xxx Co., Ltd-China

Phone Number

+86 1388888888

E-mail

aaa@gmail.com

forede











Hot Tags: spray fire nozzle, China, manufacturers, suppliers, wholesale, price, Automatic Fire Nozzle, Groove Type Alarm Valve, Fog Spike Misting Fire Nozzle, Angle Flange Landing Valve, Sidewall Glass Bulb Fire Sprinklers Heads, Mobile Foam Tank

Product Name Fire Sprinkler Brand Name XHFM Place of Origin Fujian, China Body Material Chrome and Copper Certification CCCF / ISO9001 Nominal Diameter  15mm / 20mm Thread Size  1/2 Inches, 4/3 Inches Applicable Medium Clean water Applicable Scene school, office, kitchen, warehouse, workshop Exterior Chromeplated or customize according to your requirement. Packing Packed in carton or according to your requirement. Transportation By Sea From XiaMen Port
