Products Description

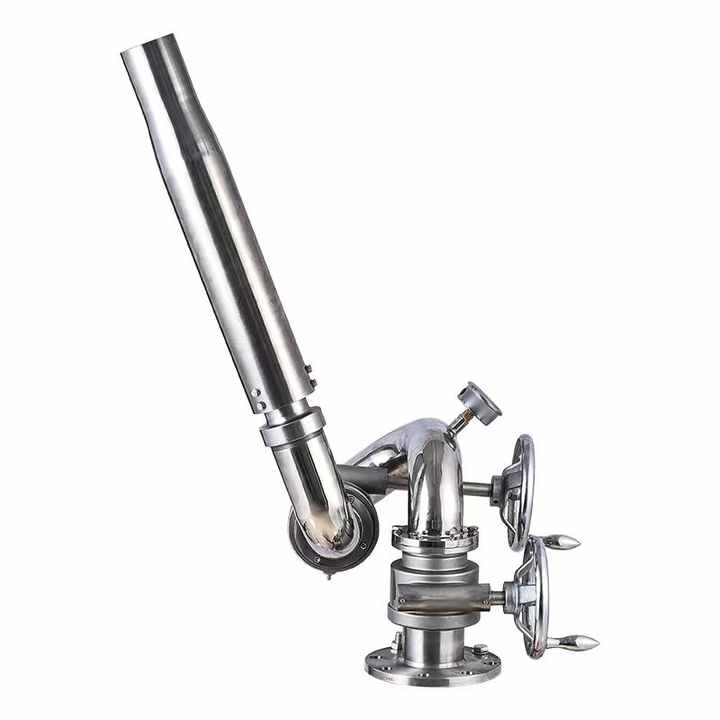

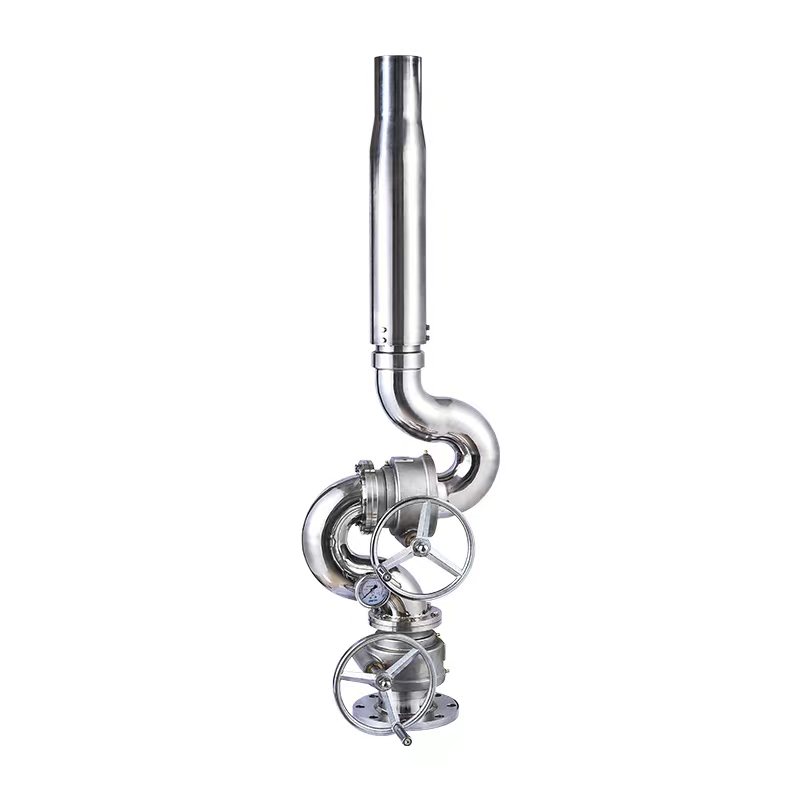

XHFM Stainless steel manual fire water /foam monitor has characteristic with different flow rate, distant range and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream. The extended barrel aids in the range of the foam liquid.All of our foam monitors have been rigorously tested, and you can expect that our products will perform when required. Many of our products have been certified by world-leading organizations that have recognized the quality of our work.
Manual fire monitor can be installed in the places of flammable or explosive chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles. Nozzle flow rate from600 LPM up to 3840 LPM.The fire water monitor suitable for good range of Industries.with few and easy maintenance.
Products Parameters
| Model Number | PL10/64-H |
| Flow Rate | 3840LPM (Choose one flow rate ) |
| Working Pressure | 10Bar |
| Max. Reach @ 10 bar | 70meters @3840 LPM |
| Max. Fog Angle | 120° |
| Max Range Of Monitor | -15° to +60° Vertically, 360° Rotation |
| Waterway Size | 2.5”(65mm) |
| Monitor Outlet | 2.5” (65mm) NH male thread |
| Monitor Inlet | Flange 4” BS4504 is standard,other standard flange is available |
| Material | SS304 & SS316 |
| Foam expansion | ≥6 |
| 25% Drain Time | ≥150S |
monitor Description
- Handle control ;
- SS304 &SS316 Material;
- Flow Rate:24-48LPS
- Jetting Pattern: Straight stream;
- 360° rotation horizontally;
- -15° to +60° elevate vertically;
- Flange standard: BS4504,ANSI150,GB,etc.
fAQ
Q:1.How to have an order?
A:Before customers have an order, please tell us more details of the products you required which are good for us to introduce you or help you choose the best product.
Q:2.How long does it take to produce the product??
A:Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q:3.What can you buy from us?
A:Fire Sprinkler system,Foam system,Fire Monitor,Fire Nozzle,Fire Valves,Fire Hydrants
Q:4.How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
