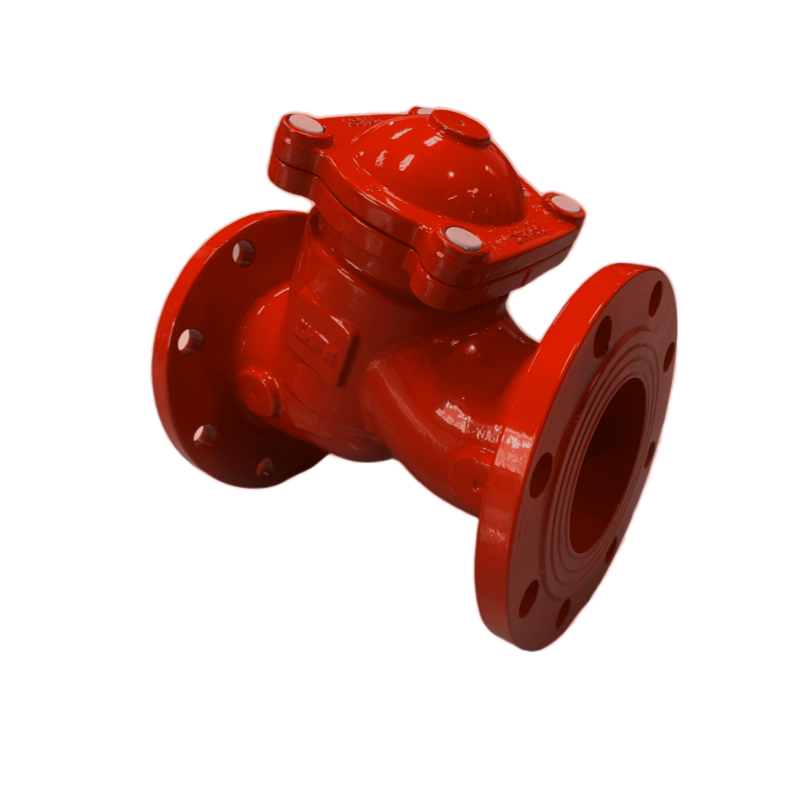

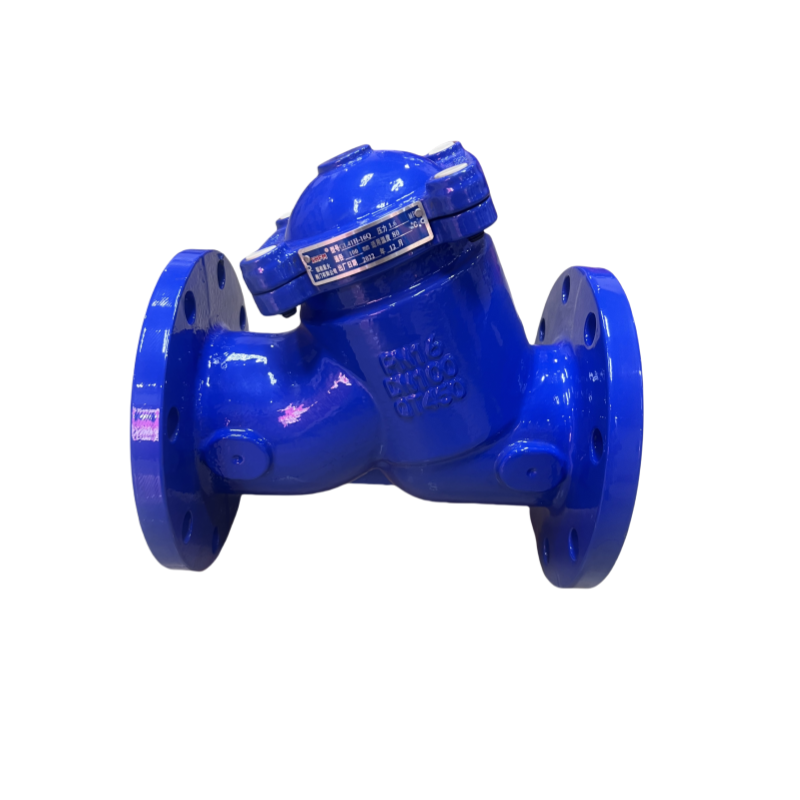

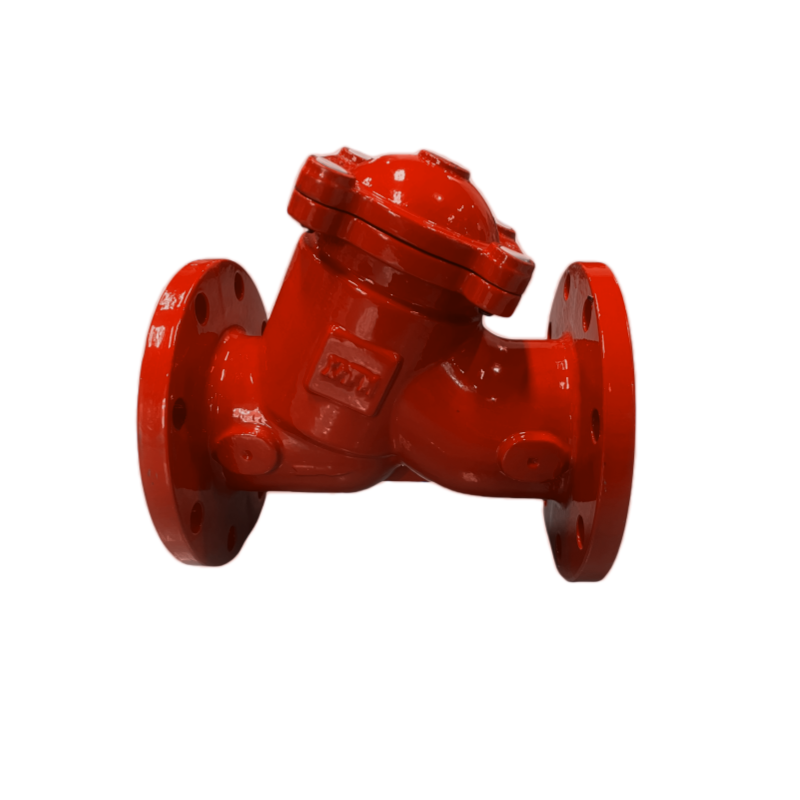

Customization Ductile Iron Y Type Filter Valve Y Type Flange Water Strainer

The Y-type filter is an indispensable filter device for the pipeline system that conveys the medium. It is
usually installed at the inlet end of a pressure reducing valve, pressure relief valve or other equipment to
remove impurities in the medium to protect other pipe fittings or valves from damage from debris and
impurities in the system. The applicable medium can be water, steam, gas, etc.
Features
The Y-type filter has the characteristics of simple structure, small flow resistance, and it can remove dirt
online without removing it. The water quality after the Y-type filter treatment not only meets the national
discharge standards, but also achieves the purpose of repeated and recycled water, so that the precious
water resources are effectively reused and a lot of water resources are saved.

Customization Ductile Iron Y Type Filter Valve Y Type Flange Water Strainer

Features : Flange End :ANSI150LB/GB Standard /BS Standard; Steam Material :2CR13 /Stainless Steel; Bonnet Material :Ductile Iron ,QT450; Body Material :Ductile Iron ,QT450; Seal Material :Ductile Iron ,QT450,NBR Surface Finishing :Epoxy Red or Blue Working Pressure :10/16 Bar

Specification

Technological Parameters

size		50	65	80	100	125	150	200	250	300	350	400	450	500
GL41H Length mm		180	192	237	270	301	342	412	538	606	665	765	800	850
testing pressure mpa	body	1.5-2.4
testing pressure mpa	sealing	1.1-1.76
rate working pressure mpa		1.0-1.6
temperature		1-80°C
media		water and weak corrosive fluids

Frequently Asked Question

FAQ

What is a pressure relief valve?

The Forede pressure relief valve (PRV) is a mechanical device that releases gas or liquid from a system when the pressure exceeds a predetermined limit. PRVs are used to prevent over-pressurization, which can damage machinery or people

What is the purpose of pressure relief valve?

The PRV Pressure relief valve is a safety device that prevents a system from becoming dangerously pressurized by automatically releasing excess pressure. PRVs are used in many industrial settings, including power plants, chemical plants, and refineries, as well as in boilers, tanks, and pipelines.

How should i install the pressure relief valve?

The pressure relief valve came with flange end connection, please inform us the flange standard you need before placing the order to ensure the PRV valve could compatible with exist system.
