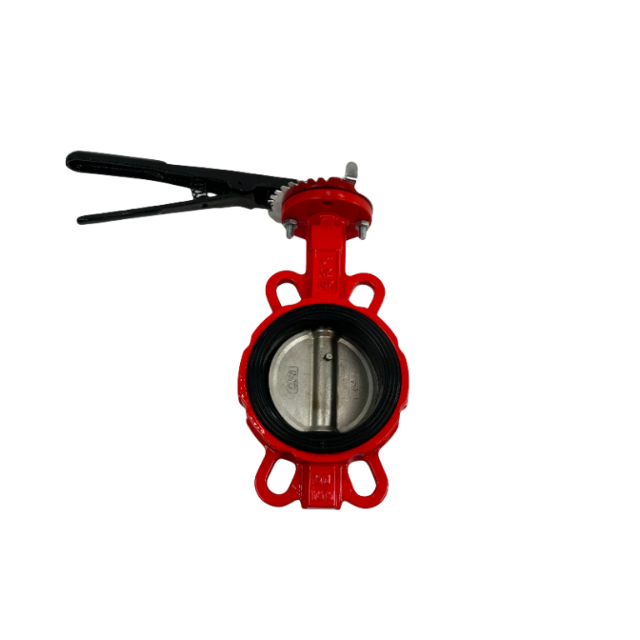

D71X-16Q Wafer Gear Type Butterfly Valve

Product Introduction:

Product Usage
It is a kind of rubber sealing butterfly valve, which is widely used in drainage pipeline systems of electric power, water conservancy, chemical industry, construction and other industries, as an opening and closing or regulating device for controlling the flow of medium. Features
1. Small and lightweight, easy to disassemble and maintain, and can be installed in any position.
2.The structure is simple and compact, and it can be turned on and off quickly at 90°C.
3. Small operating torque, labor-saving and lightweight.
4. The flow characteristics tend to be straight, and the adjustment performance is good.
5. The number of opening and closing experiments is up to tens of thousands, and the service life is long
6. Achieving complete sealing, zero leakage of gas experiment

Send Inquiry

Description

Technical Parameters

Products Description

D71X-16Q Wafer Gear Type Butterfly Valve

D71X-16Q Wafer Gear Type Butterfly Valve

Specification

Technological Parameters

Size	DN	40	50	65	80	100	120	150	200
Valve length (mm)		31	42	44	44	50	54	54	60
Testing	Valve body	1.5-2.4
Pressure Mpa	Sealing	1.1-1.76
Rate working pressure		1.0-1.6
temperature		1-80°C
Media		Water and weak corrosive fluids

Frequently Asked Question

FAQ

What is a pressure relief valve?

The Forede pressure relief valve (PRV) is a mechanical device that releases gas or liquid from a system when the pressure exceeds a predetermined limit. PRVs are used to prevent over-pressurization, which can damage machinery or people

What is the purpose of pressure relief valve?

The PRV Pressure relief valve is a safety device that prevents a system from becoming dangerously pressurized by automatically releasing excess pressure. PRVs are used in many industrial settings, including power plants, chemical plants, and refineries, as well as in boilers, tanks, and pipelines.

How should i install the pressure relief valve?

The pressure relief valve came with flange end connection, please inform us the flange standard you need before placing the order to ensure the PRV valve could compatible with exist system.
