FIRE HYDRANT - China Valve Manufacturing Co., Ltd.

Description

Technical Parameters

Products Description

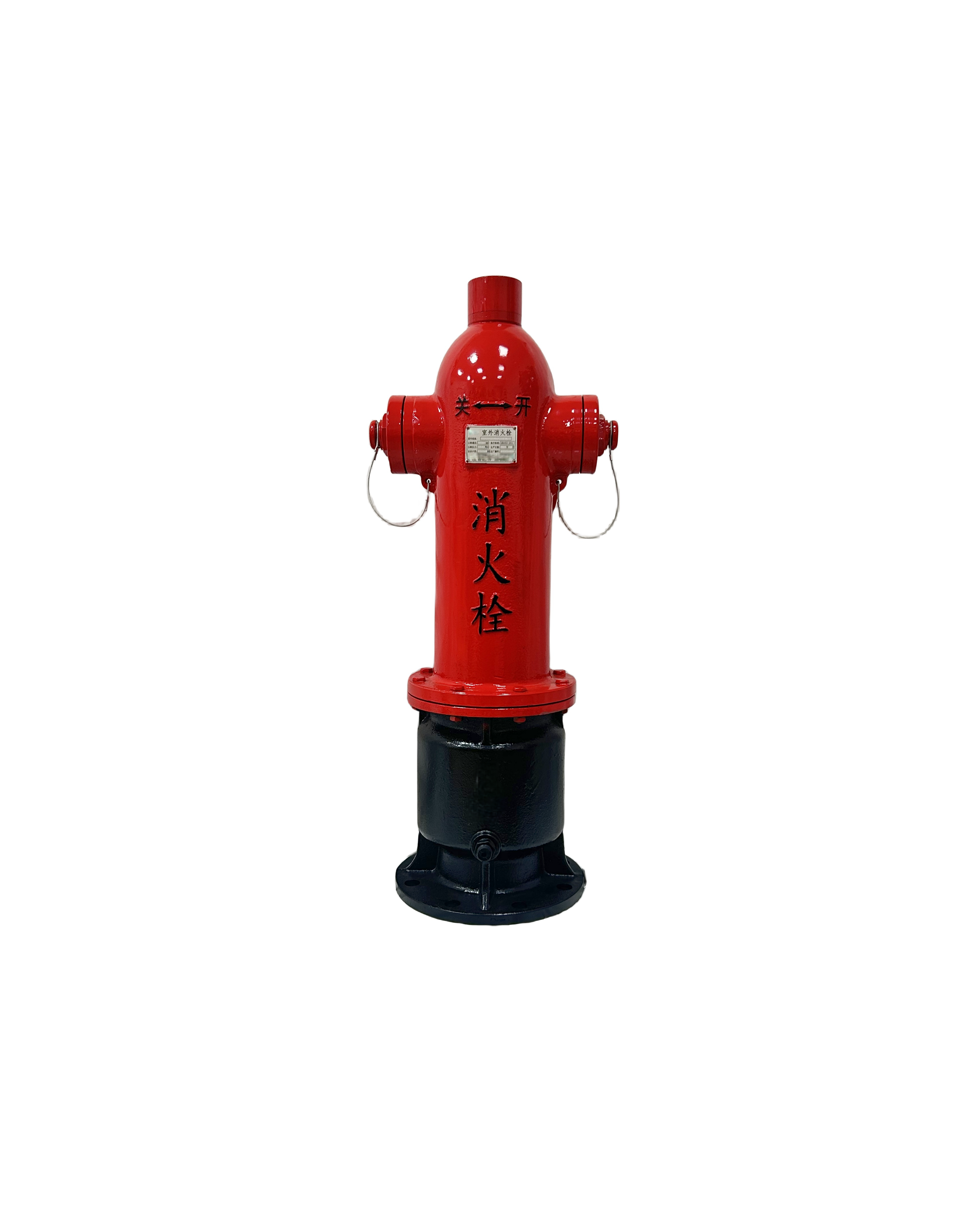

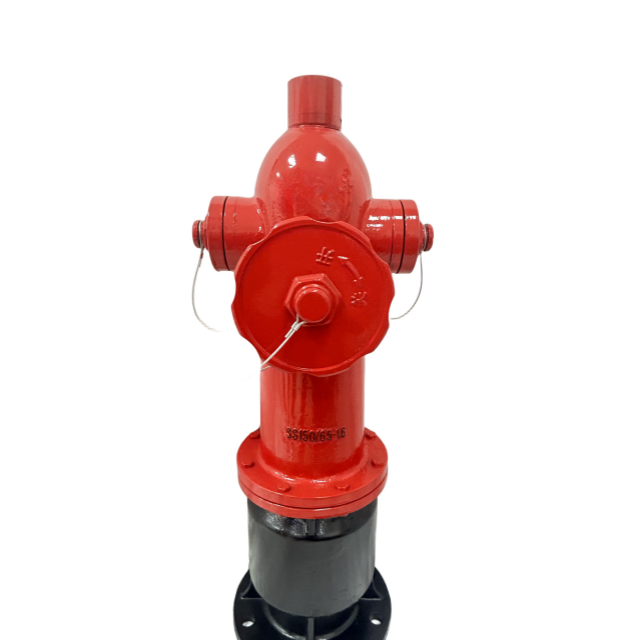

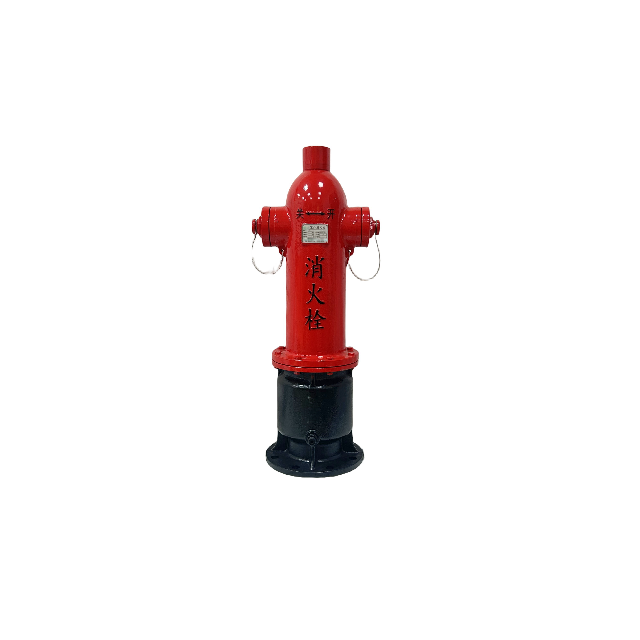

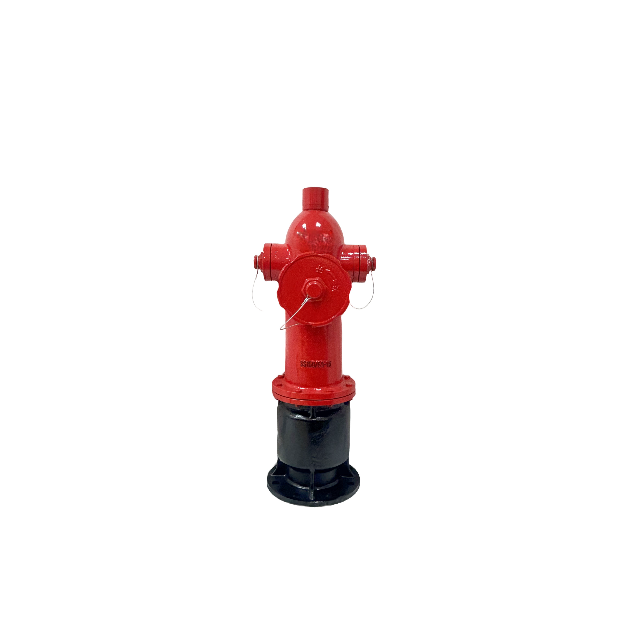

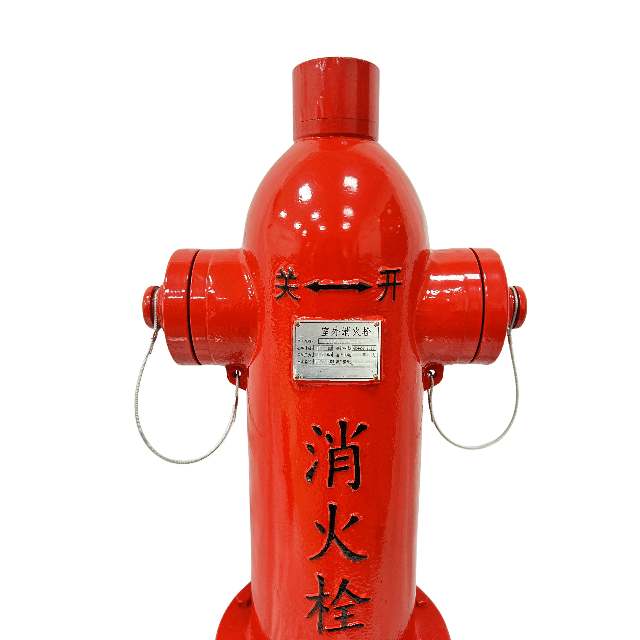

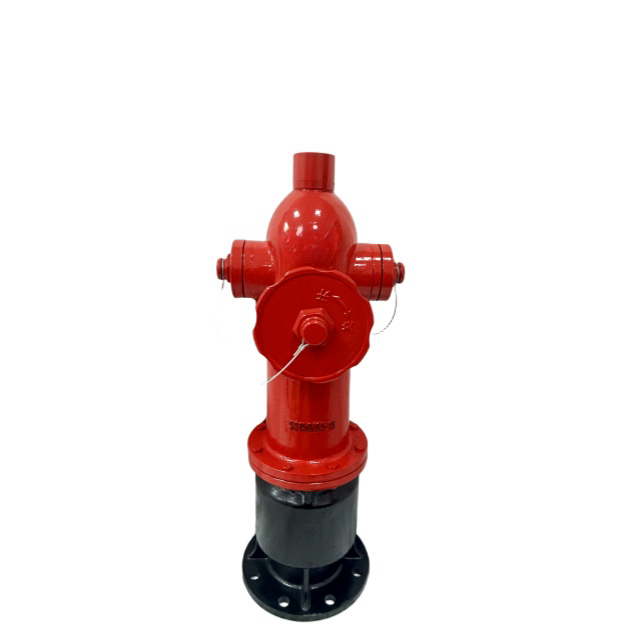

FIRE HYDRANT

Outdoor ground fire hydrant for sale with certification in fire fighting use

Products Features

Outdoor Fire Hydrant in Fire Outdoor Hydrant System

-Body material : Cast Iron to BS 1452
-Inlet : 4" Table T BS 10 Flange
-Outlet : Copper Alloy 2x2.5" Control Valve with Female BS Inst.Outlet
-Test pressure : 30bar(435 psi)
-Working pressure : 20bar(290 psi)
-Adaptor: Brass /LG2(Gun Metal)
-Paint Finish : Red & Yellow Epoxy Coated

-Type:2 way pillar fire hydrant

Technical Parameter

product Paramenters
outer door fire hydrant, indoor fire hydrant valves, fittings
1.Height of valve opening: 23 mm
2.For water and foam mixed liquid only
3.Standard: certification: ISO9001 in accordance with GB3445 china national standard
4.Technology data:

Type	SSFT OUTDOOR HYDRANT	SSFT OUTDOOR HYDRANT
Model	SSFT100/65-1.6	SSFT150/80(65)-1.6
(mm)Nominal Bore	100	150
Nominal Pressure (Mpa)	1.6	1.6
Strength test pressure (Mpa)	2.4	2.4
Outlet interface specification	KWS65×2	KWS80×2(KWS65×2)
inlet Specifications	M125×6	M170×6
Matching Flange	DN100 PN16	DN150 PN16
The high Range L(m)	0.7-3.5	0.9-5.5
Applicable Medium	Fire water (If is sea water ,need to additional anti-corrosion measure)

Type	SSFT OUTDOOR HYDRANT	SSFT OUTDOOR HYDRANT
Model	SSFT100/65-1.6	SSFT150/80(65)-1.6
(mm)Nominal Bore	100	150
Nominal Pressure (Mpa)	1.6	1.6
Strength test pressure (Mpa)	2.4	2.4
Outlet interface specification	KWS65×2	KWS80×2(KWS65×2)
inlet Specifications	M125×6	M170×6
Matching Flange	DN100 PN16	DN150 PN16
The high Range L(m)	0.7-3.5	0.9-5.5
Applicable Medium	Fire water (If is sea water ,need to additional anti-corrosion measure)

Fire hydrants are an object that many people see in their daily lives, but how to use them correctly.

The correct use process of fire hydrant:

1. Open the fire hydrant box and take out the hose;

2. Extend the water hose, connect one end to the fire hydrant interface, and connect the other end to the water gun. Make sure the interface is firmly secured;

4. Turn on the water stop valve;

5. Hold the water hose and water gun head with both hands, and shoot the water at the fire point to put out the fire.

FAQ

Q: What is an Instantaneous Fire Hose Coupling?

A:An Instantaneous Fire Hose Coupling is a device that allows firefighters to quickly attach and detach hoses to fire hydrants. It is an essential component of a fire hose and helps firefighters respond quickly and efficiently to fires.

Q:How does an Instantaneous Fire Hose Coupling work?

A:The mechanism of an Instantaneous Fire Hose Coupling is simple. It consists of two parts, the male and female coupling, which are fitted into the ends of the hoses. When the two couplings are brought together, they lock into place, and water can flow from the hydrant through the hose.

Q:What are the advantages of using an Instantaneous Fire Hose Coupling?

A: The primary advantage of using an Instantaneous Fire Hose Coupling is that it allows for quick and easy attachment and detachment of hoses. This is essential in an emergency as it helps firefighters save crucial time and respond faster.

Q:How often should Instantaneous Fire Hose Couplings be inspected?

A:Instantaneous Fire Hose Couplings should be inspected regularly, and any damage should be immediately repaired or replaced. A visual inspection before each use is essential to ensure that there are no cracks or leaks in the coupling or hose.

Q: What is the maintenance method for Instantaneous Fire Hose Couplings?

A: The Instantaneous Fire Hose Couplings needs to be cleaned and inspected regularly to prevent wear and cracks and to avoid prolonged exposure to sun and rain.
